Use
The well proportioned Heiko SP suite is an ideal choice to give reduced prominence to the toilet within the
overall bathroom design. It lets the other bathroom features be the primary focus.

 Installation
– Top Fix Cistern bolts
– Top and bottom (left and right) water inlet
– Standard and extended adaptor for a range of set out distances
– Generous maximum set out distance
– Top fix seat for easy installation and adjustment

 Flush
– WELS 4 star rated (4.5/3L) dual flush for water efficiency
– Turboflow Flush™ a rear turboflow of water for maximum cleaning
– Quality R&T/WDI flush valves for reliability

 Cistern
– Coloured flush button options (extra)

 Pan
– Hygienic rimless pan for easy cleaning
– Antibacterial nano-glaze bowl for a smoother easy clean surface
– Easy clean streamlined pan with no dust traps
– Space saving shorter projection pan

 Seat
– Quick release for easy removal and cleaning
– Fingertip touch quiet soft self close seat
– Hygienic stainless steel hinges

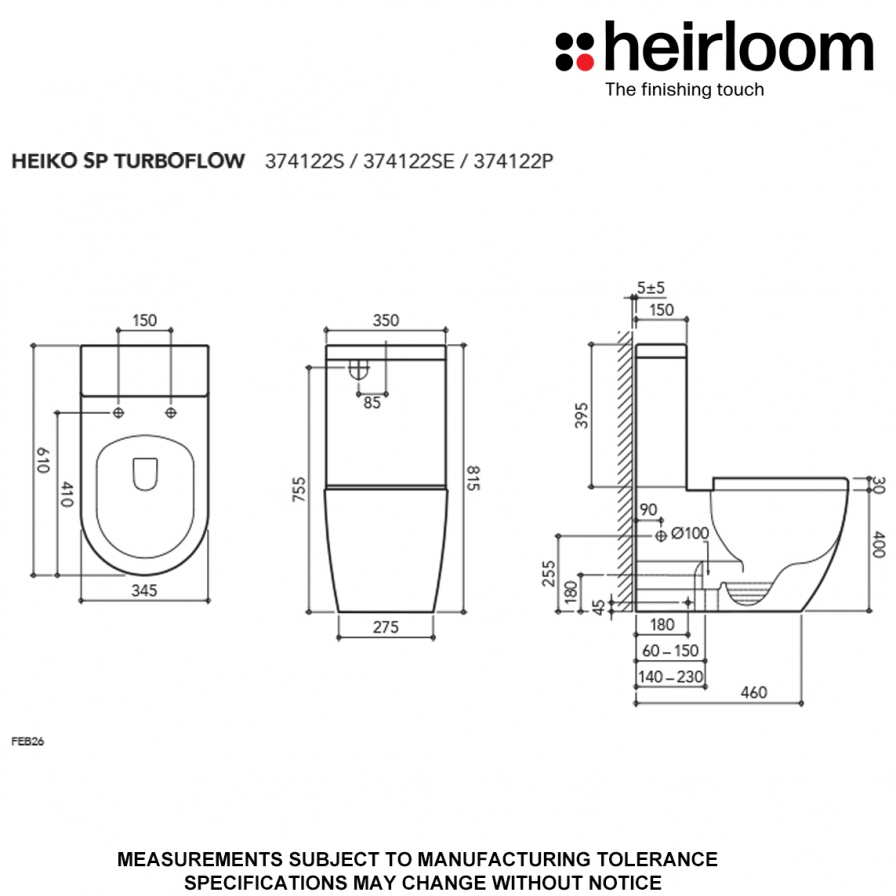

 S Pan Suite: 70-155mm set out Universal Inlet 374122S
                    145-230mm set out Universal Inlet 374122SE
P Pan:          Universal Inlet                                 374122P
