DIMENSIONS DESCRIPTION DOWNLOADS
Width 37mm, Depth 128mm, Height 30mm,

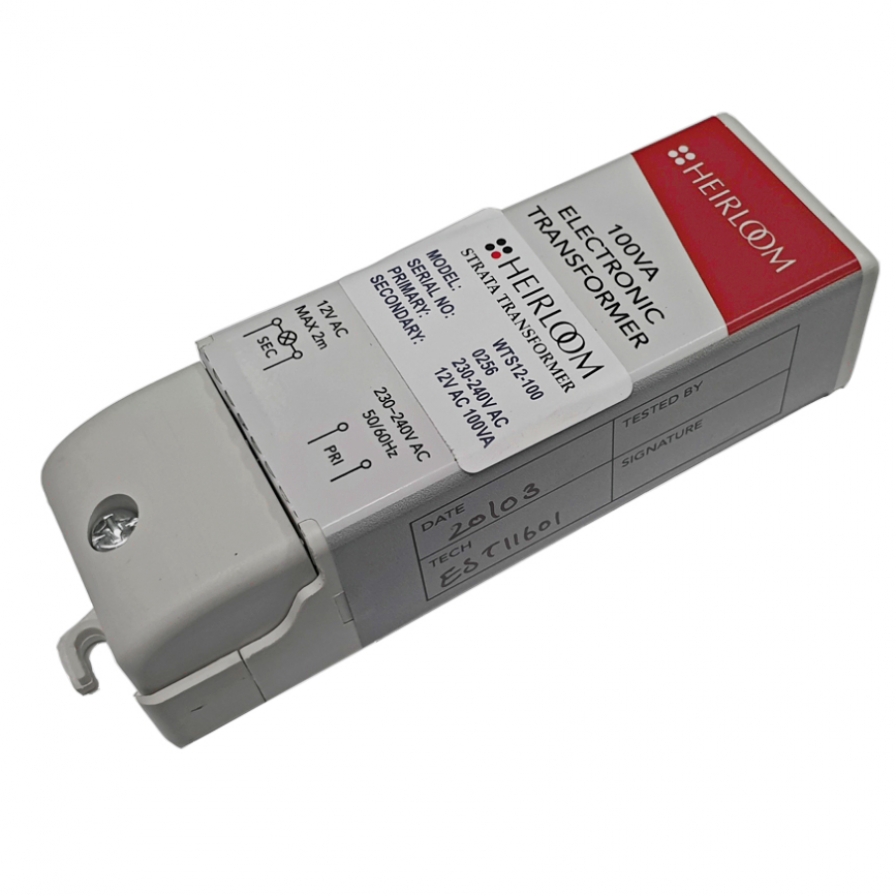

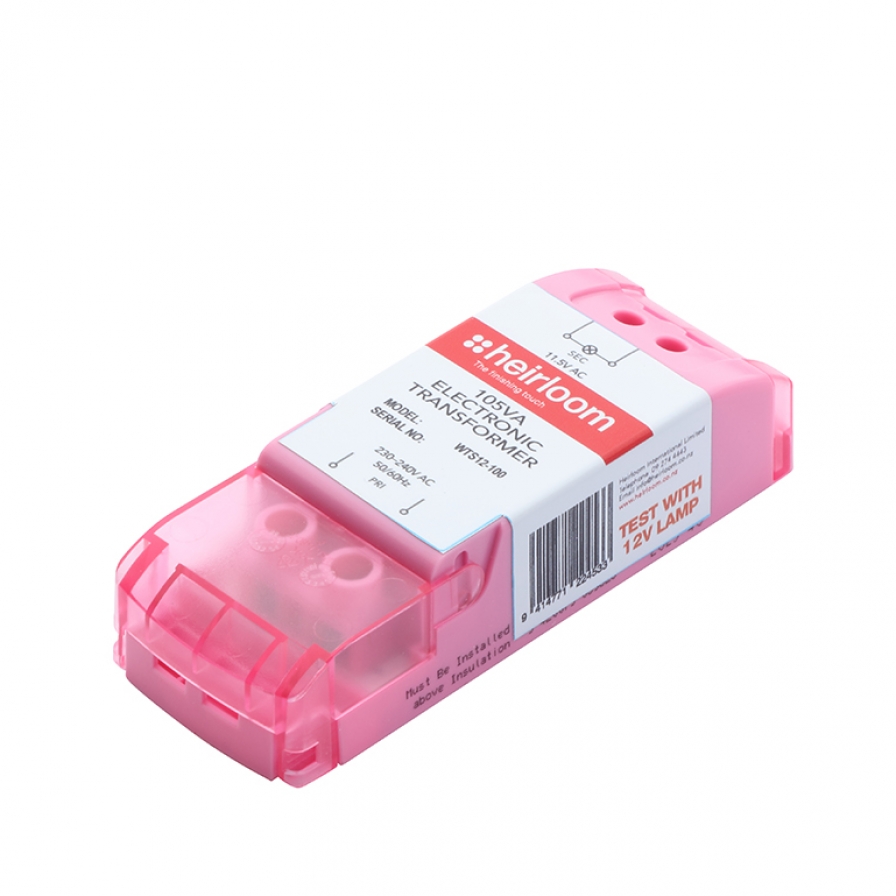

The Strata transformer is designed for use with only Heirloom 12V towel warmers.

One transformer will power up to:

3 x Extended Strata rails or

4  x Standard/slimline rails or

2 x Cubist rails or

3 x Pole warmers or

7 x Petite warmers or

1 x LV ladder warmer or

Refer to the installation instructions for Strata Towel Warmers

IMPORTANT INSTALLATION NOTE:  Strata transformers are electronic and cannot be tested with a conventional multimeter. To test a transformer, use a 12V lamp of at least 20W, ideally a 12V halogen lamp.




WTS12-100 Supplier Declaration of Conformity - Safety
(107 kb)
WTS12-100 Supplier Declaration of Conformity - Performance
(107 kb)
WTS12-100 Installation Instructions
(17 kb)
WTS12-100 Line Drawing
(788 kb)
